Functional Safety Solutionsby Moore Industries

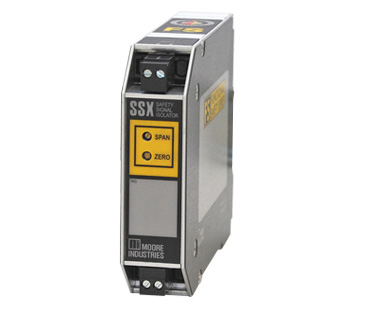

SSX/4-20mA/4-20mA/12-42DC [DIN]
SSX HART Functional Safety Isolator
Isolate your SIS from your monitoring system with the SSX Functional Safety Isolator from Moore Industries. This device is made to protect and enhance loops.
Specifications
- Input
- 4-20mA
- Output
- 4-20mA
- Power
- 12-42DC
- Housing
- DIN-style housing mounts on 35mm Top Hat DIN-rails
- Measurement Function for SIF/Loop
- Signal Isolator, Repeater or Splitter
- Number of Analog Outputs
- 1
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- No
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
