Signal Isolators, Repeaters & Convertersby Moore Industries

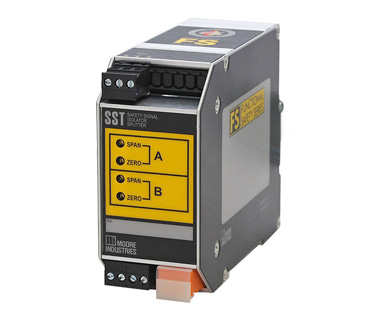

SST/4-20mA/4-20mA/24DC [DIN]
SST HART Functional Safety Isolator and Splitter
Provide isolation and signal conversion with our SST functional safety isolator and splitter. It features HART pass-through and comes with a DIN rail enclosure.
Specifications
- Input
- 4-20mA
- Output
- 4-20mA
- Power
- 24DC
- Housing
- DIN-style housing mounts on 35mm Top Hat DIN-rails
- HART Signal Pass-through Capability
- Yes
- For use in Safety Instrumented Systems (SIS)
- Yes
- Number of Inputs
- 1
- Input Type
- 4-20mA
- Number of Outputs
- 1
- Device Power
- 4-Wire, 24VDC Line/Mains Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- Fixed Input/Output
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
