Temperature Transmittersby Moore Industries

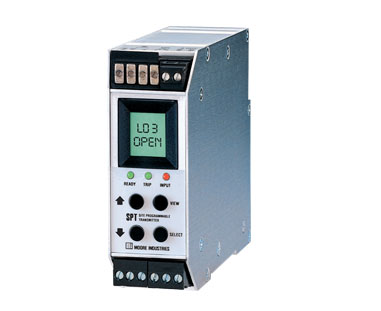

SPT/TPRG/PRG/U/-C [DIN]
SPT Site Programmable Temperature Transmitter
The SPT accepts T/C, RTD, millivolt or ohms input in a host of ranges, sensor types and connection schemes and provides an isolated process-ready analog output along with local indication.
Specifications
- Input
- TPRG
- Output
- PRG
- Power
- U
- Options
- -C
- Housing
- Universal DIN-style housing, 32mm G-type and 35mm Top Hat
- Output/Digital Communications
- Configurable, Current or Voltage
- For use in Safety Instrumented Systems (SIS)
- No
- Device Power
- Universal: 4-Wire 24DC/117VAC/230VAC Line/Mains Powered
- Integral Display
- Yes
- Alarm/Relay Output
- Yes
- Intrinsically-Safe Input Connections
- No
- Configuration/Setup
- Push Button Configurable
- Enhanced RFI/EMI Immunity
- No
- Isolation
- Fully Isolated
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- In Process
