Functional Safety Solutionsby Moore Industries

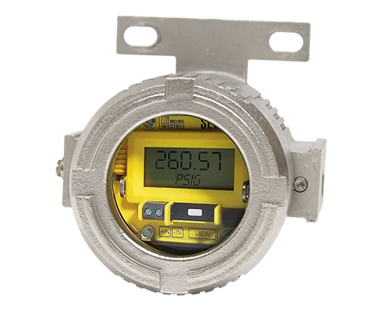

SLD/4-20mA/PRG/2.3VLP [SB2MG]
SLD Functional Safety Programmable Loop Display
Moore Industries’ universal SLD PC-Programmable Functional Safety Loop Display features a large integral display that shows real-time process status in mA, percent, or any designated 5-character Engineering units (EGU).
Specifications
- Input
- 4-20mA
- Output
- PRG
- Power
- 2.3VLP
- Housing
- Stainless Steel Explosion-proof/Flameproof connection head with two entry ports
- Measurement Function for SIF/Loop
- Safety Loop Indicator
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- Yes
- Housing/Enclosure
- Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure
- 2" Pipe Mount Bracket
- No
- Field Enclosure Conduit Connection
- Metric
- Hazardous Area Certifications
- Explosion Proof, Flameproof, Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
