Functional Safety Solutionsby Moore Industries

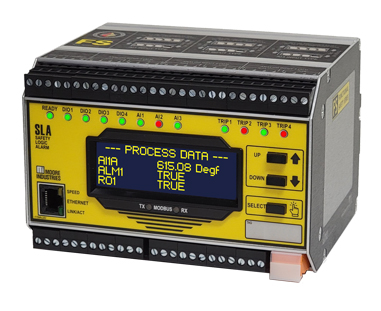

SLA/6PRG/4PRG/10-30DC [DIN]
SLA Functional Safety Logic Solver and Alarm
The SIL 2/3 SLA Multifunctional Safety Logic Solver and Alarm performs as a single or multi-loop logic solver that incorporates enhanced math, voting and logic capability to act on potentially hazardous process conditions in Safety Instrumented Systems (SIS).
Specifications
- Input
- 6PRG
- Output
- 4PRG
- Power
- 10-30DC
- Housing
- DIN-style housing mounts on 35mm Top Hat DIN-rails
- Measurement Function for SIF/Loop
- Logic Solver/Alarm Trip
- Communication Protocol
- MODBUS/TCP, Web Server
- Device Power
- 4-Wire, 24VDC Line/Mains Powered
- Integral Display
- Yes
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- RoHS Compliant
- Yes
- Additional Features
- Alarm/Event Voting, Math/Logic, Redundant Inputs
