Signal Isolators, Repeaters & Convertersby Moore Industries

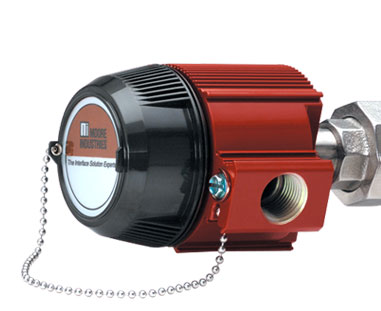

SIY/PRG/4-20mA/10-42DC [LH1MS]
SIY PC Programmable Signal Isolator and Converter
Moore Industries SIY PC-Programmable Signal Isolator/Converter combines smart digital technology with advanced analog operation to deliver superior reliability, accuracy, and ease of use.
Specifications
- Input
- PRG
- Output
- 4-20mA
- Power
- 10-42DC
- Housing
- NEMA 4X, IP66 with two entry ports
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1
- Input Type
- Configurable: Any range between 0-50mA and 0-10V
- Number of Outputs
- 1
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- PC Programmable, USB Cable
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- Nema 4X/IP66 Field Mount Enclosure
- 2" Pipe Mount Bracket
- No
- Field Enclosure Conduit Connection
- Metric
- Hazardous Area Certifications
- Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
