Signal Isolators, Repeaters & Convertersby Moore Industries

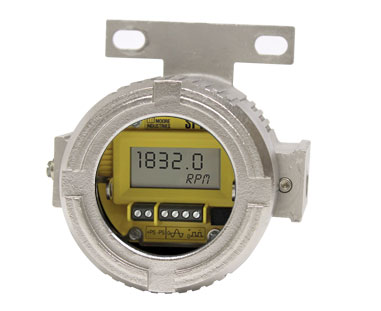

SFY/PRG/4-20mA/12-42DC [SB2MG]
SFY Functional Safety Frequency-to-DC Transmitter
Monitor frequency, period and more with a loop-powered frequency-to-DC transmitter from Moore Industries. It's ideal for use in our Safety Instrumented System.
Specifications
- Input
- PRG
- Output
- 4-20mA
- Power
- 12-42DC
- Housing
- Stainless Steel 2-Hub, explosion-proof enclosure with glass cover
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- Yes
- Number of Inputs
- 1
- Input Type
- Frequency
- Number of Outputs
- 1
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- Yes
- Alarm/Relay Output
- No
- Configuration/Setup
- PC Programmable, USB Cable
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- Nema 4X/IP66 Field Mount Enclosure
- 2" Pipe Mount Bracket
- No
- Field Enclosure Conduit Connection
- Metric
- Hazardous Area Certifications
- Explosion Proof, Flameproof, Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
