Signal Isolators, Repeaters & Convertersby Moore Industries

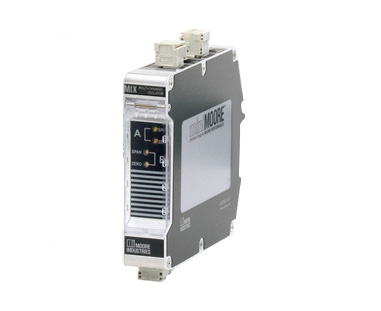

MIX/2XPRG/2X4-20mA/12-42DC [DIN]
MIX Multi-Channel Signal Isolator and Converter
Featuring a very narrow installation footprint, the MIX miniMoore™ Signal Isolator, Converter, Splitter and Booster combine multiple analog signal channels in a rugged, easy-to-install signal conditioner.
Specifications
- Input
- 2XPRG
- Output
- 2X4-20mA
- Power
- 12-42DC
- Housing
- Universal DIN-style housing, 32mm G-type and 35mm Top Hat
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1, 2
- Input Type
- Selectable Input: 4-20mA, 1-5V, 0-10V, 0-5V
- Number of Outputs
- 1, 2
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- Jumper Selectable
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- UL Approved, CSA General Location, Non-Incendive/Div. 2
- RoHS Compliant
- Yes
