![MIT/2XPRG/2X4-20mA/U [DIN]](https://aazzcamvqkobsvglizya.supabase.co/storage/v1/object/public/images/products/moore-industries/mvhq310d-mit-2xprg-2x4-20ma-u-din-1.jpg)
Signal Isolators, Repeaters & Convertersby Moore Industries

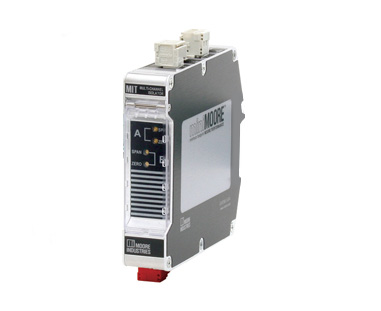

MIT/2XPRG/2X4-20mA/U [DIN]
MIT Multi-Channel Signal Isolator and Converter
Featuring a very narrow installation footprint, the MIT miniMoore™ Signal Isolator, Converter, Splitter and Booster combine multiple analog signal channels in a rugged, easy-to-install signal conditioner.
Specifications
- Input
- 2XPRG
- Output
- 2X4-20mA
- Power
- U
- Housing
- Universal DIN-style housing, 32mm G-type and 35mm Top Hat
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1, 2
- Input Type
- Selectable Input: 4-20mA, 1-5V, 0-10V, 0-5V
- Number of Outputs
- 1, 2
- Device Power
- Universal: 4-Wire 24DC/117VAC/230VAC Line/Mains Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- Jumper Selectable
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- UL Approved, CSA General Location, Non-Incendive/Div. 2
- RoHS Compliant
- Yes
Request a Quote
Need pricing, availability or more details? We'll get back to you.
