Signal Isolators, Repeaters & Convertersby Moore Industries

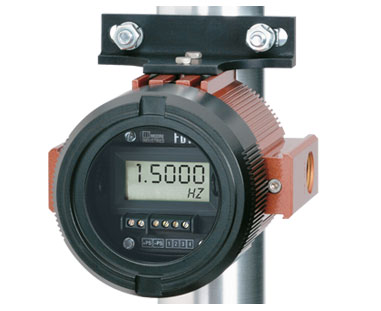

FDY/PRG/4-20mA/12-42DC [BH2NGP]
FDY PC-Programmable Frequency-to-DC Transmitter
Monitor frequency, pulse width, and contact closure signals with the FDY frequency-to-DC transmitter with display. Request a quote today at Moore Industries.
Specifications
- Input
- PRG
- Output
- 4-20mA
- Power
- 12-42DC
- Housing
- 2-Hub, explosion-proof enclosure with glass cover with 2" pipe mount bracket
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1
- Input Type
- Frequency
- Number of Outputs
- 1
- Device Power
- 2-Wire, Loop Powered
- Integral Display
- Yes
- Alarm/Relay Output
- No
- Configuration/Setup
- PC Programmable, USB Cable
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure
- 2" Pipe Mount Bracket
- Yes
- Field Enclosure Conduit Connection
- Standard (NPT)
- Hazardous Area Certifications
- Explosion Proof, Flameproof, Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
