Signal Isolators, Repeaters & Convertersby Moore Industries

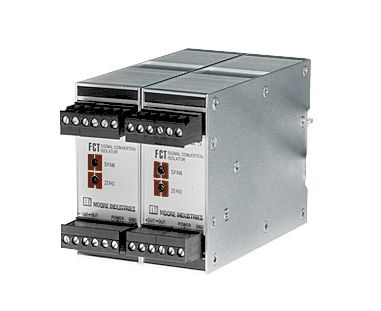

FCT/PRG/PRG/U/-RF-TX [DIN]
FCT Signal Isolator, Converter and Repeater
Request a quote for the FCT signal isolator, converter, and repeater today. Moore Industries is your source for high-quality process control instrumentation.
Specifications
- Input
- PRG
- Output
- PRG
- Power
- U
- Options
- -RF-TX
- Housing
- Universal DIN-style housing, 32mm G-type and 35mm Top Hat
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1
- Input Type
- Selectable Input: Any range between 0-50mA and 0-10V
- Number of Outputs
- 1
- Device Power
- Universal: 4-Wire 24DC/117VAC/230VAC Line/Mains Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- Jumper selectable
- Enhanced RFI/EMI Immunity
- Yes
- Housing/Enclosure
- DIN Rail Enclosure
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- CSA General Location
- RoHS Compliant
- No
