Signal Isolators, Repeaters & Convertersby Moore Industries

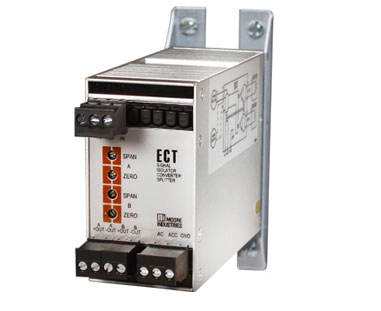

ECT/4-20mA/2X4-20mA/24DC/-TX [FLB2]
ECT Signal Isolator, Converter and Splitter
Expect reliability when you use an ECT signal isolator, converter, and splitter from Moore Industries. We offer this device in 2-wire and 4-wire powered models.
Specifications
- Input
- 4-20mA
- Output
- 2X4-20mA
- Power
- 24DC
- Options
- -TX
- Housing
- Externally mounted flange, provides secure mount for resistance to vibration
- HART Signal Pass-through Capability
- No
- For use in Safety Instrumented Systems (SIS)
- No
- Number of Inputs
- 1
- Input Type
- 4-20mA
- Number of Outputs
- 1, 2
- Device Power
- 4-Wire, 24VDC Line/Mains Powered
- Integral Display
- No
- Alarm/Relay Output
- No
- Configuration/Setup
- Fixed Input/Output
- Enhanced RFI/EMI Immunity
- No
- Housing/Enclosure
- Flange Bracket for Seismic Applications
- 2" Pipe Mount Bracket
- No
- Hazardous Area Certifications
- UL Approved, Non-Incendive/Div. 2, Zone 2
- RoHS Compliant
- Yes
