Alarm Trips and Trip Amplifiersby Moore Industries

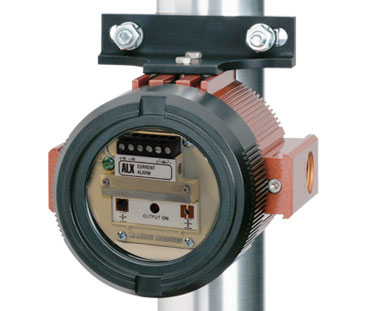

ALX/4-20mA/H1/6.3VLP [BH2NGP]
ALX 2-Wire Alarm Trip
Accurately monitor your process signal with the ALX 2-wire alarm trip from Moore Industries. This direct current alarm accepts a 4-20mA or 10-50mA input.
Specifications
- Input
- 4-20mA
- Output
- H1
- Power
- 6.3VLP
- Options
- Adjustable deadband from 1 to 25% of span
- Housing
- Aluminum Explosion-proof/Flameproof connection head with two 1/2 inch NPT entry ports, glass cover
- For use in Safety Instrumented Systems (SIS)
- No
- Device Power
- 2-Wire, Loop Powered
- Number of Alarm/Relay Outputs
- 1
- Analog Output
- No
- Integral Display
- No
- Intrinsically-Safe Input Connections
- No
- Housing/Enclosure
- Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure
- Hazardous Area Certifications
- Explosion Proof, Flameproof
- Availability
- Not Available
- RoHS Compliant
- No
