Alarm Trips and Trip Amplifiersby Moore Industries

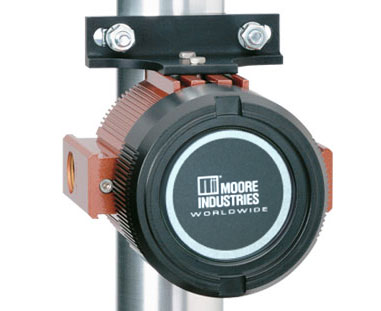

ALX/4-20mA/H1/6.3VLP/-AD [BH2NSP]
ALX 2-Wire Alarm Trip
The loop powered ALX monitors a process signal and when that input falls outside a fully adjustable preset limit, the ALX provides an alarm output for shutdown or on-off control.
Specifications
- Input
- 4-20mA
- Output
- H1
- Power
- 6.3VLP
- Options
- -AD
- Housing
- Aluminum Explosion-proof/Flameproof connection head with two 1/2 inch NPT entry ports, solid cover
- For use in Safety Instrumented Systems (SIS)
- No
- Device Power
- 2-Wire, Loop Powered
- Number of Alarm/Relay Outputs
- 1
- Analog Output
- No
- Integral Display
- No
- Intrinsically-Safe Input Connections
- No
- Housing/Enclosure
- Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure
- Hazardous Area Certifications
- Explosion Proof, Flameproof
- Availability
- Not Available
- RoHS Compliant
- No
