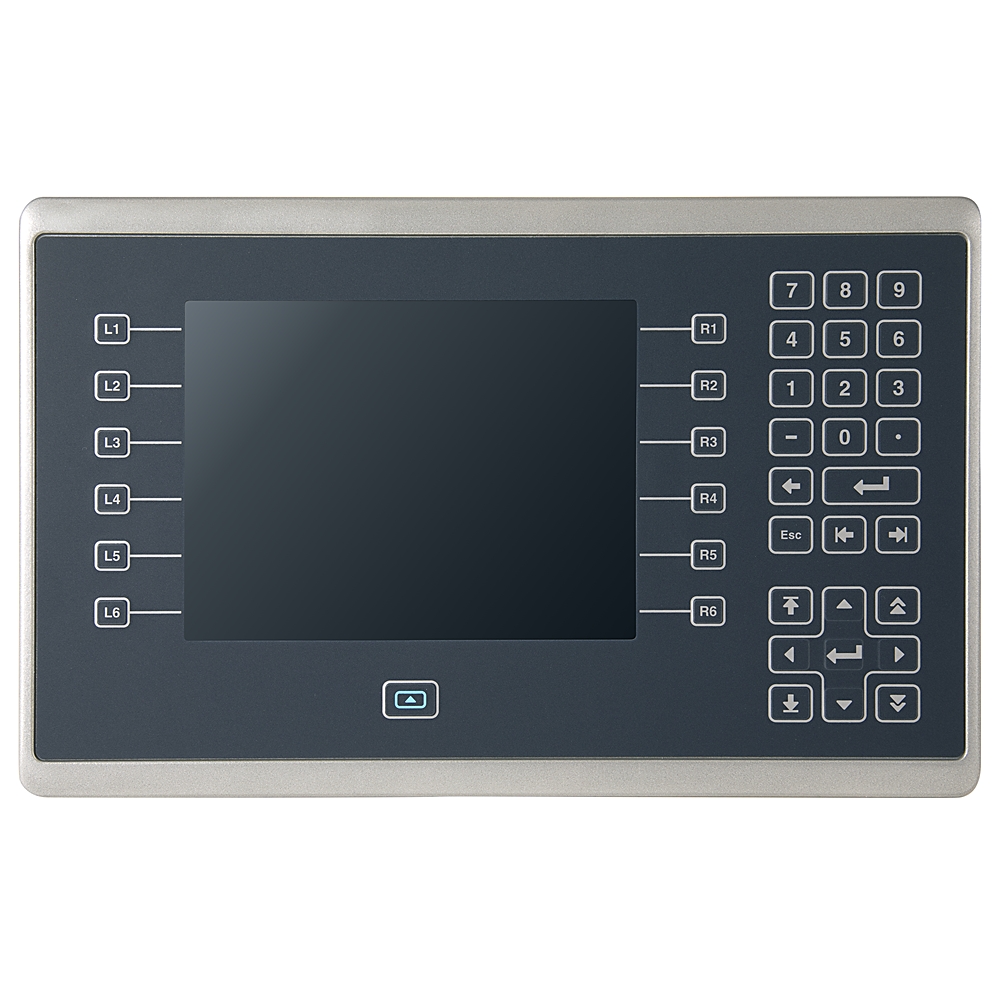

2715P-B7CD-B

Specifications

Display Size

7 in. 4:3 Aspect ratio Display

Operator Input

Keypad and Touch

Power

24V DC

Branding

Brandless

Environment / Housing

Non Conformal Coated

Enclosure Color

Dark Blue (Pantone 432C) and

Height

7.05 in

Image Brightness

300 nits

Input Signal

24 V DC

Maximum Resolution

640 x 480

Altitude, operating

2000 m

Aspect ratio

4:3

Backlight

Type: light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness

Backlight power consumption, typical

3 W

Battery (real-time clock backup)

Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032)

Brightness, typical

300 cdb/m²

Color depth

24-bit color graphics (16.7 mon colors)

Conformal coated

1

Cutout dimensions, approx

Height: 142 mm (5.59 in), Width: 237 mm (9.33) in)

Degree of protection (IP), front side

IP66

Degree of protection (NEMA), front side

4X

Display resolution

640 x 480 VGA

Ethernet ports

Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies.

Height of the front

178 mm

Input voltage, nom

24V DC (18...30V DC)

Inrush current, typical

7 A

IO link master

0

Keypad

12 function keys: L1...L6, R1...R6, Numeric keypad and navigation keys, Actuating rating: 1 mon presses, Operating force: 300 g

List of degrees of protection (NEMA)

4X, 12, 13

Memory

RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects

Mounted depth

64 mm

Nonoperating temperature

-25 °C

Number of buttons with LED

0

Number of function buttons, programmable

0

Number of grey-scales/blue-scales of display

0

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces other

0

Number of HW-interfaces parallel

0

Number of HW-interfaces RS-232

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces Wireless

0

Number of interfaces PROFINET

0

Number of system buttons

1

Operating temperature

0 °C

Overall depth

69.5 mm

Power consumption, max

22 W

Power consumption, typical

12 W

Power dissipation

41 btu/hr

Power supply

Supports SELV and PELV 24V DC supplies

Process default value (input) possible

0

Process value representation (output) possible

1

Radio standard Bluetooth

0

Radio standard GPRS

0

Radio standard GSM

0

Radio standard UMTS

0

Radio standard Wi-Fi 802.11

0

Rail mounting possible

0

Relative humidity

5...95% noncondensing

Screen diagonal

6.5 in

Secure Digital (SD) card slot

One SD card slot for external storage, Supports cat. no. 1784-SDx cards

Shock

Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms

Software

Studio 5000 environment provides single portal to View Designer and Logix Designer applications

Status indicator

STS (status, green), ERR (error, red)

Suitable for safety functions

0

Supply voltage DC

18 V

Supporting protocol for ASI

0

Supporting protocol for AS-Interface Safety at Work

0

Supporting protocol for CAN

0

Supporting protocol for Data-Highway

0

Supporting protocol for DeviceNet

0

Supporting protocol for DeviceNet Safety

0

Supporting protocol for EtherNet/IP

1

Supporting protocol for Foundation Fieldbus

0

Supporting protocol for INTERBUS

0

Supporting protocol for INTERBUS-Safety

0

Supporting protocol for KNX

0

Supporting protocol for LON

0

Supporting protocol for Modbus

0

Supporting protocol for other bus systems

0

Supporting protocol for PROFIBUS

0

Supporting protocol for PROFINET CBA

0

Supporting protocol for PROFINET IO

0

Supporting protocol for PROFIsafe

0

Supporting protocol for SafetyBUS p

0

Supporting protocol for SERCOS

0

Supporting protocol for SUCONET

0

Supporting protocol for TCP/IP

1

Touch screen

Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g

Touch technology

Resistive touch

Type of display

TFT

USB host port

0.5A @ 5V DC (Type A)

USB ports

Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent.

Vibration

0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz

View area

Width: 132 mm (5.2 in), Height: 99 mm (3.9 in)

Voltage type of supply voltage

DC

Wall mounting/direct mounting

1

Weight, approx

2.27 g

Width of the front

285 mm

With Allen-Bradley brand marking

0

With alpha numeric keyboard

0

With colour display

1

With message indication

1

With message system (incl. buffer and confirmation)

0

With numeric keyboard

1

With printer output

0

With recipes

0

With SW interfaces

1

Bulletin

2715P

Series

A

Lifecycle Status

Active
