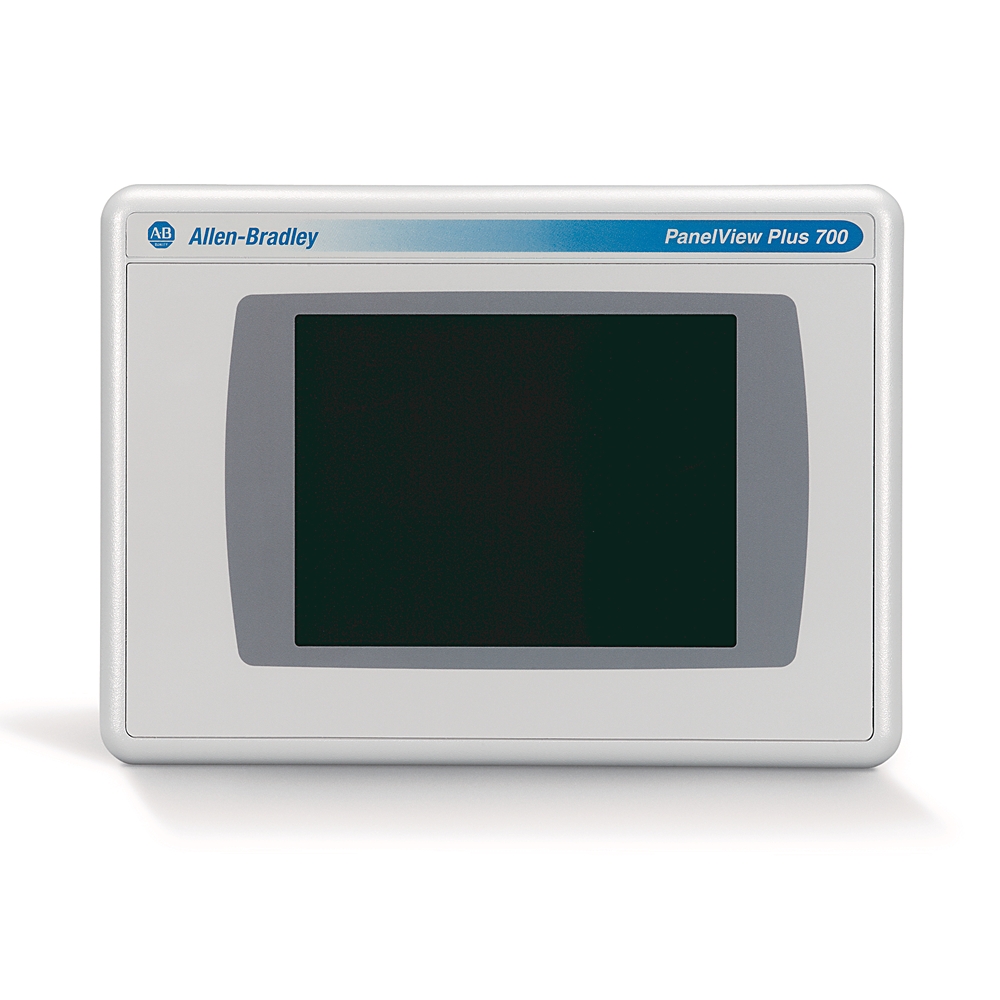

2711P-T7C4A9

Specifications

Model

700 Model

Operator Input

Touch Screen

Display

Color

Communication

Standard Communication - Ethernet & RS-232

Power

AC Input

Operating System

Windows CE 6.0 with Extended Features

Additional software components, loadable

0

Altitude, operating

2000 m

Backlight

CCFL, 50000 hr minimum at 25 ° C (77 °F) field replaceable

Battery (real-time clock)

Battery-backed clock timestA critical data, accuracy is ±2 min per month, Battery life: 4 yr min at 25 °C (77 °F), Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery

Built-in depth

55 mm

Communication ports

Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, (2) USB host, Network interface for optional Ethernet, DH+/DH-485, or ControlNet (scheduled or unscheduled) communication module

Cutout dimensions

Touch: 154 x 220 mm (6.08 x 8.67 in)

Degree of protection (IP), front side

IP65

Degree of protection (NEMA), front side

4X

Dimensions, approx

Touch: 179 x 246 x 55 mm

Display area

132 x 99 mm (5.2 x 3.9 in)

Display size

6.5 in

Display type

Color active matrix, thin-film transistor (TFT)

Enclosure rating

NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65

External storage

Secure Digital (SD) card, cat. no.1784-SDx, supported by hot-swappable SD card slot, USB flash drive that is supported by high-speed, hot-swappable, 2.0 USB host port

FactoryTalk view software

FactoryTalk view machine edition station runtime, version 6.0 or later, is preloaded and activated on each terminal, Single license support for FactoryTalk viewpoint software, version 1.2 or later, gives remote users access to a terminal’s displays via st

Heat dissipation

240 btu/hr

Height of the front

179 mm

Input voltage

100...240V AC @ 50...60Hz

IO link master

0

Keypad description

Stainless-steel membrane, Numeric, navigation and function keys, Actuation: 1 mon presses, Operating force: 340 g

Keypad function keys

22 function keys F1...F10 and K1...K12

List of degrees of protection (IP)

IP54, IP65

List of degrees of protection (NEMA)

4X, 12, 13

Luminance

300 cd/m²

Memory

512 MB RAM, 512 MB nonvolatile memory, (approx. 79 MB free user memory)

Network interface

For optional Ethernet, DH+, DH-485, or ControlNet communication module

Nonoperating temperature

-25 °C

Number of buttons with LED

0

Number of function buttons, programmable

22

Number of grey-scales/blue-scales of display

0

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces other

0

Number of HW-interfaces parallel

0

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

2

Number of HW-interfaces Wireless

0

Number of interfaces PROFINET

0

Number of online languages

20

Number of password levels

2

Number of pixels, horizontal

640

Number of pixels, vertical

480

Number of system buttons

0

Operating temperature

0 °C

Power consumption

160VA max, 65VA typical

Power input

AC

Process default value (input) possible

1

Process value representation (output) possible

1

Radio standard Bluetooth

0

Radio standard GPRS

0

Radio standard GSM

0

Radio standard UMTS

0

Radio standard Wi-Fi 802.11

0

Rail mounting possible

0

Relative humidity

5...95% noncondensing (5...90% noncondensing only for low reflective terminal, catalog number 2711P-B4C20D8-LR)

Reset and default switches

Provide easy access to diagnostic and repair ops

Resolution

640 x 480, 18-bit color graphics

Screen diagonal

6.5 in

Secure Digital (SD) card slot

Hot-swappable card slot supports 1784-SDx and 1784-SDHCx SD cards for transferring files, upgrading firmware, or logging data

Shock

Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms

Software

FactoryTalk view machine edition software, version 6.0 or later, FactoryTalk ViewPoint software, version 1.2 or later

Suitable for safety functions

1

Supply voltage AC 50 Hz

100 V

Supply voltage AC 60 Hz

100 V

Supporting protocol for ASI

0

Supporting protocol for AS-Interface Safety at Work

0

Supporting protocol for CAN

0

Supporting protocol for Data-Highway

1

Supporting protocol for DeviceNet

0

Supporting protocol for DeviceNet Safety

0

Supporting protocol for EtherNet/IP

1

Supporting protocol for Foundation Fieldbus

0

Supporting protocol for INTERBUS

0

Supporting protocol for INTERBUS-Safety

0

Supporting protocol for KNX

0

Supporting protocol for LON

0

Supporting protocol for Modbus

0

Supporting protocol for other bus systems

0

Supporting protocol for PROFIBUS

0

Supporting protocol for PROFINET CBA

0

Supporting protocol for PROFINET IO

0

Supporting protocol for PROFIsafe

0

Supporting protocol for SafetyBUS p

0

Supporting protocol for SERCOS

0

Supporting protocol for SUCONET

0

Supporting protocol for TCP/IP

1

Touch screen

8-wire analog resistive, Actuation: 1 mon presses, Operating force: 10...110 g

Touch technology

Resistive touch

Type of display

TFT

USB ports

Two USB host ports for connecting a USB mouse, keyboard, printer, and USB flash drives that are hot swappable

Useful project memory/user memory

79000 mb

Vibration

10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration

Voltage type of supply voltage

AC

Wall mounting/direct mounting

1

Weight, approx

1.7 kg

Width of the front

246 mm

With alpha numeric keyboard

1

With colour display

1

With message indication

1

With message system (incl. buffer and confirmation)

1

With numeric keyboard

0

With printer output

1

With recipes

1

With SW interfaces

1

Bulletin

2711P

Series

A

Lifecycle Status

Discontinued
