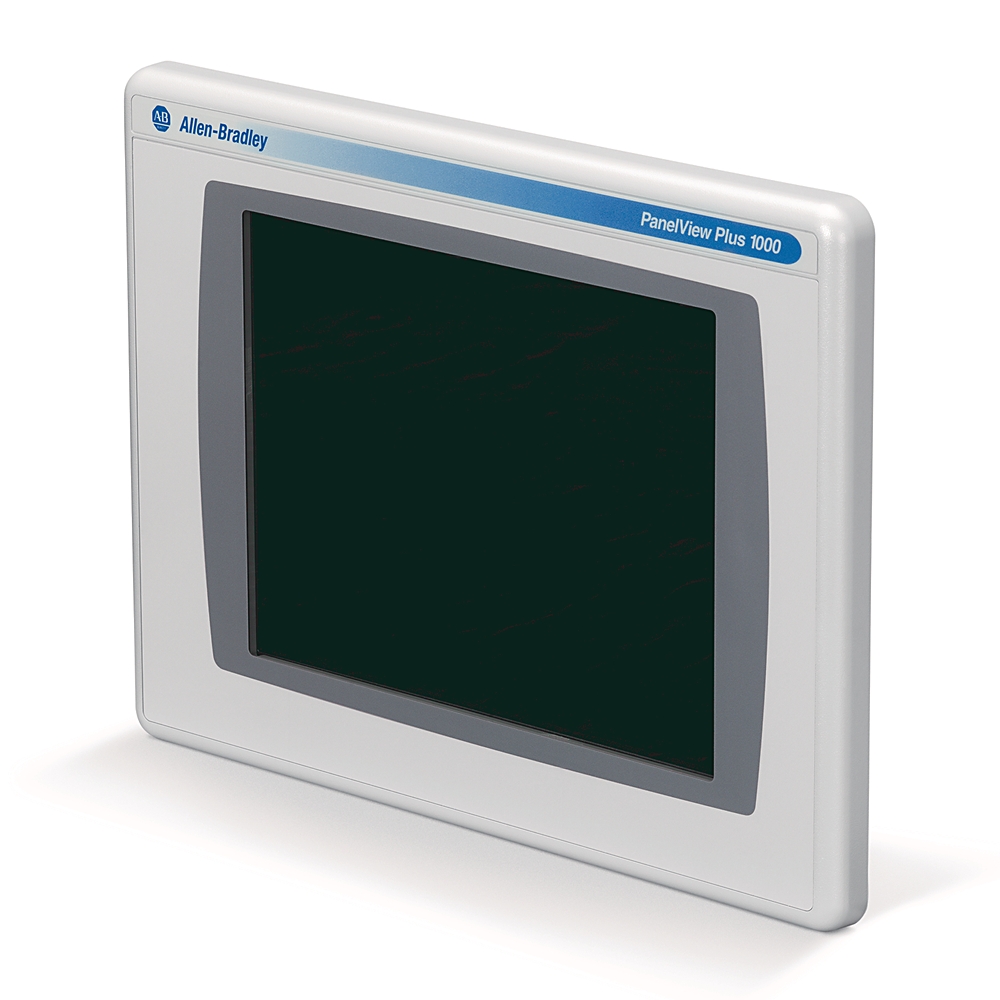

2711P-RDT10C

Specifications

Display

10.4-inch TFT Display, Color

Features

No Options

Class

Touch screen monitors

Input Type

touch screen

Monitor Size

10.4-in TFT Display

Operator Input

Touch Screen

Type of Display

TFT Color

Actuation rating, touch screen

1 mon presses

Altitude, operating

2000 m

Application flash memory

20 MB for logic modules, series A to D

Backlight

CCFL, 50000 hr life, minimum

Battery life

4 yr minimum at 25 °C (77 °F)

Clock

Battery-backed, +/-2 min per month

Cutout dimensions

224 x 305 mm

Degree of protection (IP)

IP65

Depth

55 mm

Description

1000 touch color display

Display area

211 x 158 mm

Display size

10.4 in

Display type

Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)

Enclosure rating

NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65

External CompactFlash storage

512 MB maximum

Heat dissipation

240 BTU/hr

Height

248 mm

Input voltage

85...264V AC

LED indicators

COMM (Green), fault (Red)

Line frequency

47 Hz

List of degrees of protection (IP)

IP54, IP65

Luminance

300 cd/m2 (Nits)

Nonoperating temperature

-25 °C

Number of pixels, horizontal

640

Number of pixels, vertical

480

Operating force, touch screen

10 g

Operating temperature

0 °C

PCI slot available power supply, max

11 W DC, 5 W AC

Power consumption

70 W max (2.9A @ 24V DC), 39 W typical (1.6A @ 24V DC)

Relative humidity

5...95% without condensation

Remote power consumption

120VA maximum

Remote power input voltage

85...264V AC

Shock

Operating: 15 G at 11 ms

Touch screen

Analog resistive

Vibration

10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration

Weight, approx

2.6 kg

Width

329 mm

Bulletin

2711P

Series

C

Lifecycle Status

Discontinued
