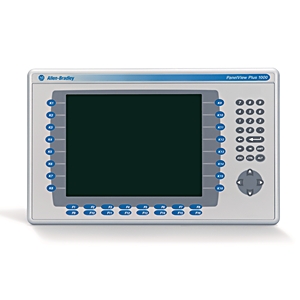

2711P-RDB10CM

Specifications

Display

10.4-inch TFT Display, Color

Environment / Housing

Marine Certified

Actuation rating, keypad

1 mon presses

Actuation rating, touch screen

1 mon presses

Altitude, operating

2000 m

Application flash memory

20 MB for logic modules, series A to D

Backlight

CCFL, 50000 hr life, minimum

Battery life

4 yr minimum at 25 °C (77 °F)

Clock

Battery-backed, +/-2 min per month

Cutout dimensions

224 x 375 mm

Degree of protection (IP)

IP65

Depth

55 mm

Description

1000 keypad and touch display, marine certified

Display area

211 x 158 mm

Display size

10.4 in

Display type

Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)

Enclosure rating

NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65

External CompactFlash storage

512 MB maximum

Heat dissipation

240 BTU/hr

Height

248 mm

Input voltage

85...264V AC

Keypad function keys

Function keys, numeric and navigation

LED indicators

COMM (Green), fault (Red)

Line frequency

47 Hz

List of degrees of protection (IP)

IP54, IP65

Luminance

300 cd/m2 (Nits)

Nonoperating temperature

-25 °C

Number of pixels, horizontal

640

Number of pixels, vertical

480

Operating force, keypad

340

Operating force, touch screen

10 g

Operating temperature

0 °C

Operator input

Keypad, touch

PCI slot available power supply, max

11 W DC, 5 W AC

Power consumption

70 W max (2.9A @ 24V DC), 39 W typical (1.6A @ 24V DC)

Relative humidity

5...95% without condensation

Remote power consumption

120VA maximum

Remote power input voltage

85...264V AC

Shock

Operating: 15 G at 11 ms

Special option

Marine certified

Touch screen

Analog resistive

Vibration

10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration

Weight, approx

2.9 kg

Width

399 mm

Bulletin

2711P

Series

C

Lifecycle Status

Discontinued
